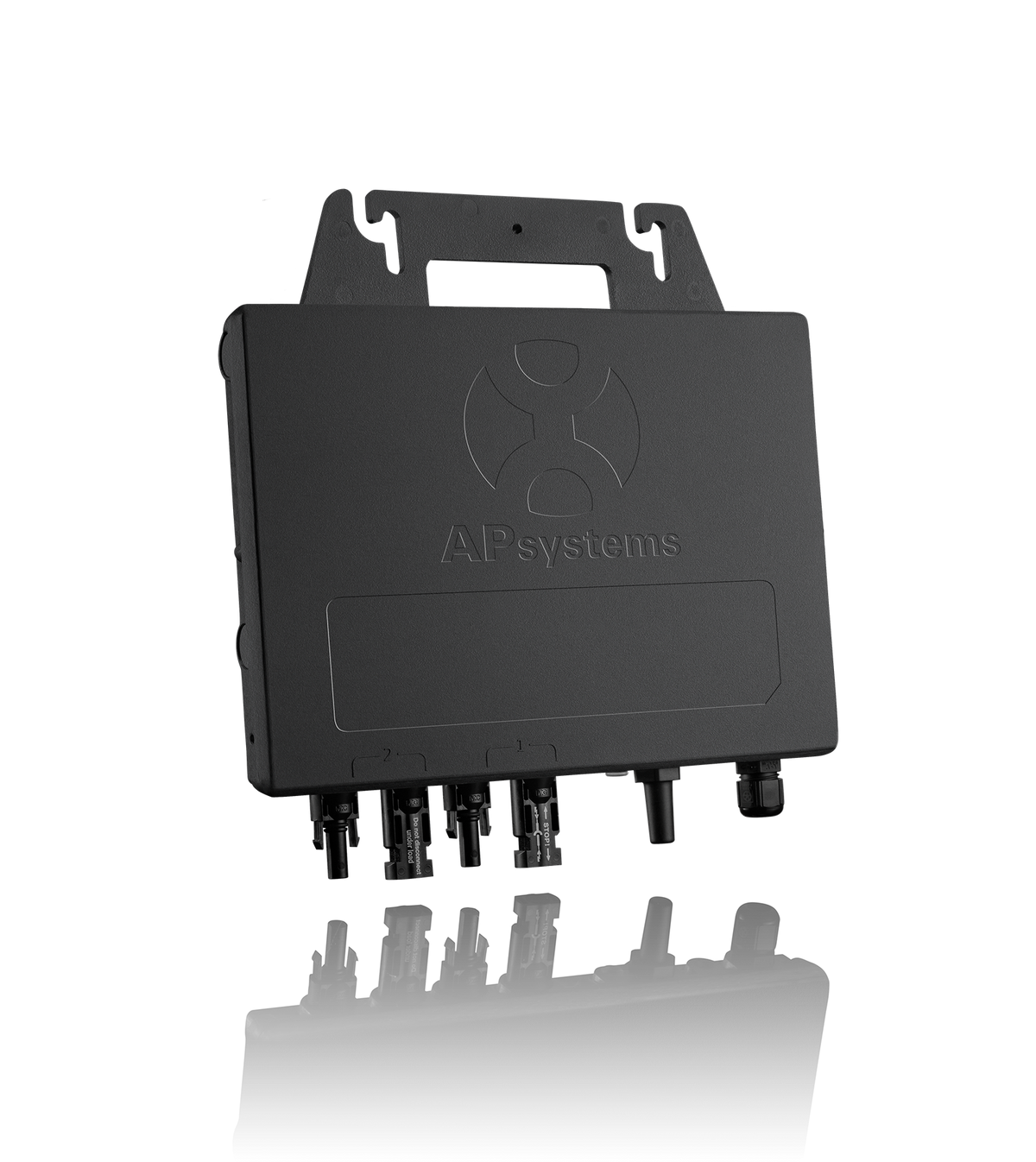

APsystems YC600 Microinverter

With its groundbreaking design and features, the YC600 is the pinnacle of microinverter technology. A single-phase, smart grid-compliant microinverter, the YC600 serves two modules with dual, independent MPPT. Zigbee wireless communication over a mesh network offers faster data speeds than PLC and a wider MPPT voltage range results in a greater energy harvest for homeowners.

A true utility-interactive microinverter with Reactive Power Control (RPC) technology, the YC600 meets CA Rule 21 requirements and is inherently NEC 2014/2017 Rapid Shutdown compliant. The unit also builds on the successful APsystems line of multi-module microinverters, simplifying installation and reducing logistics costs.

KEY FEATURES:

• 1 microinverter connects to 2 modules
• Dual-module microinverter with independent MPPT
• Utility-interactive with Reactive Power Control (RPC)
• CA Rule 21 compliant
• Continuous power of 274VA per channel, 300VA peak
• Accommodates modules from 250-440W+
• Wide MPPT voltage range (22V-45V)
• Meets NEC 2014/2017 690.12 Rapid Shutdown requirements
• ZigBee communication & free monitoring

LEARN MORE ABOUT THE YC600

View Documentation

ORDER DETAILS:

• Accessories not included
• Returns are not accepted for legacy products
• No warranty available on legacy microinverters
• Order limit: 5 units. If you’d like to purchase more, please contact our team.
